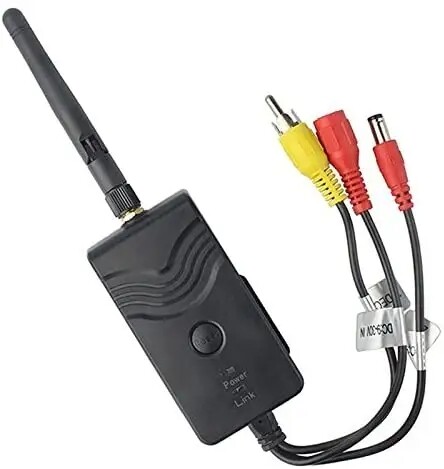

Vtopro 903S WiFi Transmitter WiFi Realtime Video Transmitter

Product Description

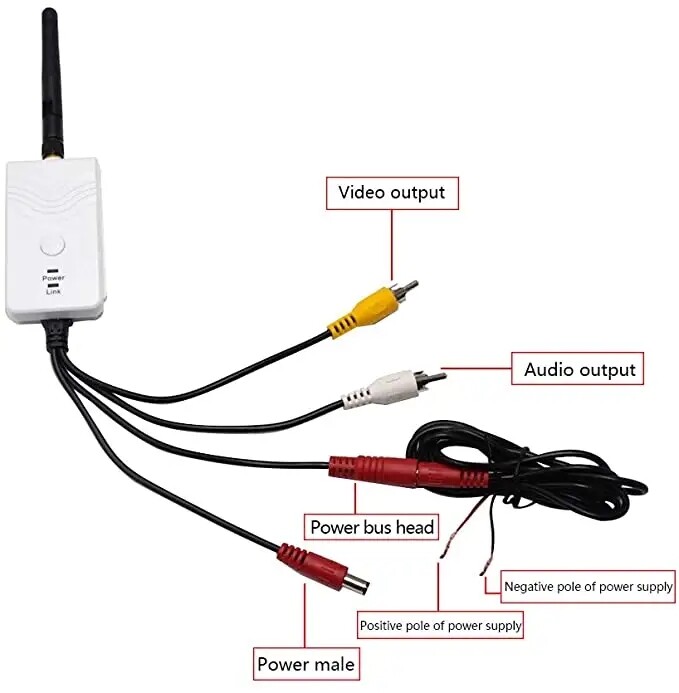

1. Install the wifi transmitter, then connect the backup camera cables to it, power on both of them.

2. Search "WIFIAV-HD" software from your APP store and install it.

3. Turn on the WLAN on your phone/pad, search and connect to the WIFI named "WIFIAV-HD" with default password for the first time.

4. Click the APP to view your car backup camera realtime video

Troubleshooting steps:

1.Check the LED is on or not, then assure the connection between this item and your camera.

2.When the background is black or the image is still, exit the APP first, and check whether the wifi connection is normal. Then click again the APP icon to enter into the software interface.

3. User could press the Reset button of the transmitter to reset the default factory SSID and password.

Package Content

1 x WIFI Transmitter

1 x English User Manual

1 x Antenna

1 x 5ft Power Cable

1 x 3M Sticker

2 x Nylon Cable Ties

 Specifications

- Transmitting frequency: 2400MHz-2483.5MHz

- Distance: more than 100M with no obstacle

- Video input format: CVBS(NTSC/PAL)

- Video input level and impedance: 1.0 Vp-p and 75 Ohm

- Audio input level and impedance: 1.0 Vp-p and 600 Ohm

- Video resolution: VGA

- Video compression:H.264

- Frame rate: 30fps

- Wireless protocols:IEEE 802.11b, 802.11g, 802.11n

- Power supply: DC 9-30V

- Consumption current: 250mA(Max)

- Encryption mode: WPA2

- Rainproof:Yes
